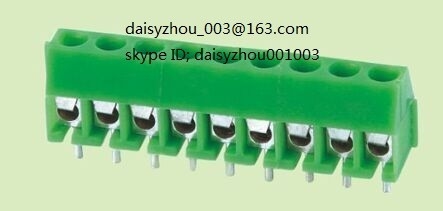

PCB Screw terminal block RD350-3.5 3.96 300V 10A

: Large Image : PCB Screw terminal block RD350-3.5 3.96 300V 10A

Product Details:

Place of Origin:	China
Brand Name:	KEFA RD
Certification:	CE ROHS ul
Model Number:	2-24P

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	0.12
Packaging Details:	200pcs per inner box
Delivery Time:	2-5 days after receive deposit
Payment Terms:	T/T
Supply Ability:	20000/days

Contact Now

Detailed Product Description

Contact daisy, qq: 910806316, phone 18825261290 mail daisyzhou_003at 163.com

Material:
Pitch:3.5 3.96mm
Poles: 2P, 3P
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 10A
With standing voltage: AC2000V/1min
Wire range: 24-18 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.2Nm(1.8 lb in)
Strip length: 4.5-5mm
contact daisyzhou_003 at 163.com

PCB Screw terminal block RD350-3.5 3.96 300V 10A
