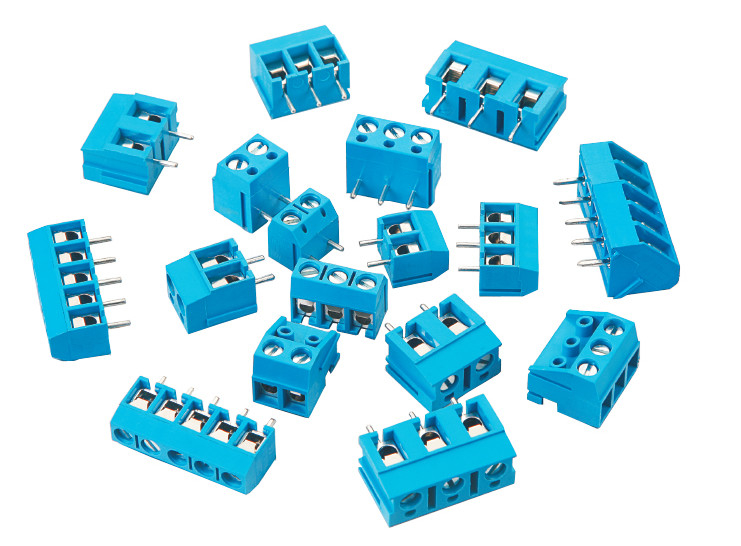

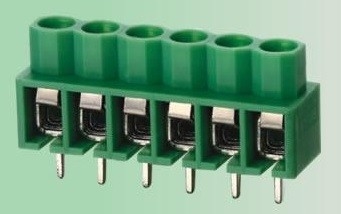

PCB Screw terminal block RDTY-5.0 2-24P 300V 10A

Large Image : PCB Screw terminal block RDTY-5.0 2-24P 300V 10A

Product Details:

Place of Origin:	China
Brand Name:	NO MARK
Certification:	UL CE
Model Number:	2-24P

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	0.6
Packaging Details:	200pcs per inner box
Delivery Time:	7 days after get deposit
Payment Terms:	T/T
Supply Ability:	1000PCS PER DAY

Contact Now

Detailed Product Description

Rated Voltage:	300V	Rated Current:	10A
Type:	Electrical Plug	Grounding:	Standard Grounding
Application:	Industrial

Contact daisy, qq: 910806316, phone 18825261290 mail daisyzhou_003at 163.com

Material:
Pitch:5.0mm
Poles: 2-24P,
Screw: M3 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 300V
Rated current: 16A
With standing voltage: AC2000V/1min
Wire range: 18-12 AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.5Nm(4.4 lb in)
Strip length: 6-7mm
contact daisyzhou_003 at 163.com
