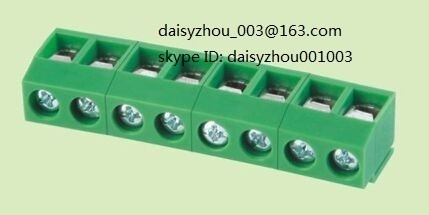

KEFA terminal blocks, terminal block screw type, 126R-5.0

: Large Image : KEFA terminal blocks, terminal block screw type, 126R-5.0

Product Details:

Place of Origin:	China
Brand Name:	KEFA
Certification:	CE ROHS
Model Number:	2P 3P

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	0.23
Packaging Details:	200pcs per inner box
Delivery Time:	2-5 days after receive deposit
Payment Terms:	T/T
Supply Ability:	20000/days

Contact Now

Detailed Product Description

Material:
Pitch:5.0mm
Poles: 2P 3P, can assembly any poles
Screw: M2.5 Steel Zinc plated
Contact: Phosphor bronze Ni plated
Wire cage: Brass Ni plated or steel zinc plated.
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 250V
Rated current: 8A
With standing voltage: AC2000V/1min
Wire range: 26-14 AWG
Mechanical:
Temperature range: -30℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Torque: 0.4Nm(3.5 lb in)
Strip length: 6-7mm
