SEK-10RD 10A fuse type din rail terminal block

Large Image : SEK-10RD 10A fuse type din rail terminal block

Product Details:

Place of Origin:	CHINA
Brand Name:	SUK
Certification:	CE ROHS
Model Number:	10RD-X

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	0.6
Packaging Details:	100/CARTON
Payment Terms:	T/T
Supply Ability:	10000

Contact Now

Detailed Product Description

Order contact: Daisy zhou, daisyzhou_003@163.com, QQ: 910806316 We chat: 0086-18825261290

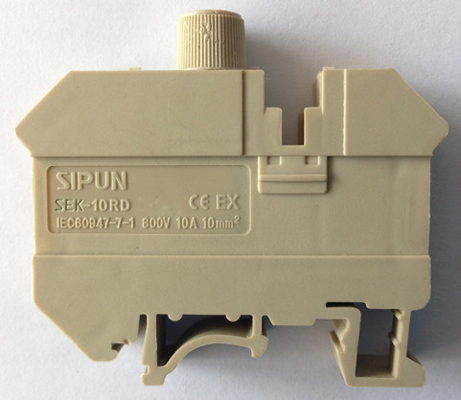

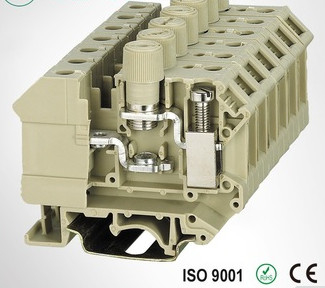

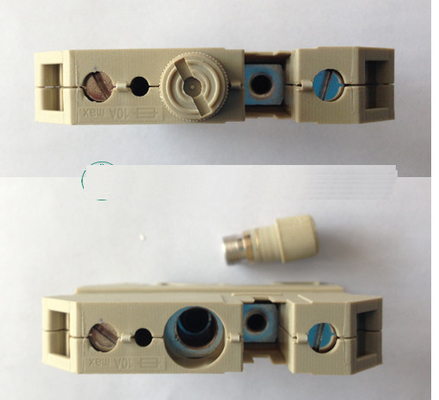

SEK 10RD fusing type connecting terminal

Descruotion:

1.General specifications SEK-10RD terminal blocks Compliance with international standards : IEC60947-7-1

2.Terminal can used in TH35 and G32 rail.

3.Insulation material is PA66, Antiflaming and anticorrosion.

4.Small volume, complete range of articles.

5.self locking function, crimping fastness.

Specifications:

Model Number	SEK-10RD

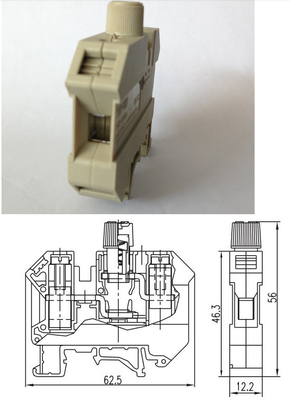

T/W/H(mm)	12.262.556
Clamping screw	M4
Torque	1.2-1.8NM
Stripping Length	11mm
Rated Voltage	800V
Reted Current	10A
Cross Section	10mm2
Wire cross section, single stranded wire	0.5-16mm2
Wire cross section, multi stranded wire	0.5-10mm2
Wire cross section, with tubular hood	0.5-10mm2
Packaging Detail	100pcs/box;2500pcs per carton
Certification	CE/RoHS/EX

Tag:

din rail connectors,

din rail terminal block
