* Rated Current: 30A
* Rated voltage: 1000VDC
* Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)
* Contact resistance: ≤0.2mmΩ
* Waterproof degree:IP67
* Flame class: UL94-VO
* Safety Class: Ⅱ
* Withdrawal force: ≥50N
* Pin dimension: 4.0mm dia.
* Insertion force: ≤50N
* Insulation material: PPO
* Connecting system: crimping connection
* Contact material: copper, tin plated
* Temperature range: -40 ℃ ~ +90 ℃

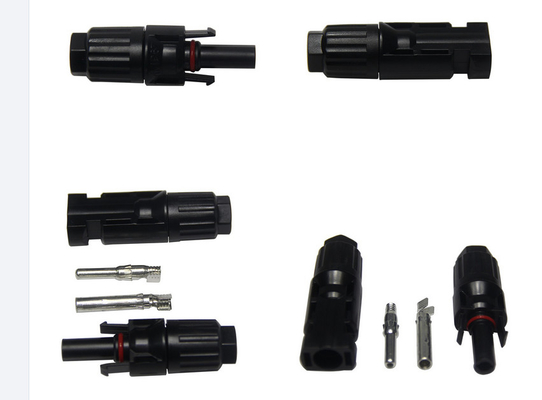

| Product No. | MC4X-B1 |
| Rated Voltage | TUV 1000V DC / UL 600V DC |
| Rating Current | 20A~25A |
| Pin dimension | 4.0mm |
| Proof voltage | DC 8KV(1Min) |
| Pollution degree | 2 |
| Protection class Class | II |
| Contact Resistance | 5mW |
| Connector Material | PPO |
| Withdrawal Force | 3 50N |
| Insertion Force | 50N |
| Flame Class | UL94V - 0 |
| Temperature Range | -40°C~+85°C |
| Contact Material | Copper, tin-plated |
| Degree of Protection | IP IP67(IEC 60529) |
| Suitable cable cross sections | 2.5mm2~6.0mm2 / 14AWG~10AWG |
