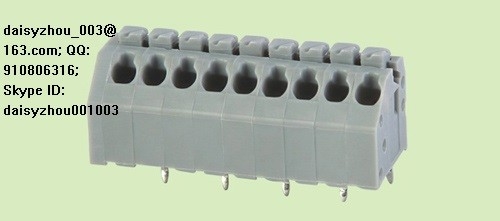

PCB Screw terminal block RD250-2.5 2.54 1P-XXP 400V 2A

: Large Image : PCB Screw terminal block RD250-2.5 2.54 1P-XXP 400V 2A

Product Details:

Place of Origin:	China
Brand Name:	KEFA RD
Certification:	CE ROHS ul
Model Number:	1p-xxp

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	0.12
Packaging Details:	200pcs per inner box
Delivery Time:	2-5 days after receive deposit
Payment Terms:	T/T
Supply Ability:	20000/days

Contact Now

Detailed Product Description

Contact daisy, qq: 910806316, phone 18825261290 mail daisyzhou_003at 163.com

Material:
Pitch:2.5/2.54mm
Poles: 1P-XXP,
Contact: Brass tin plated
Wire cage: stainless steel
Housing: PA66 UL 94-0
Electrical:
Rated voltage: 400V
Rated current: 2A
With standing voltage: AC1250V/1min
Wire range: 22-18AWG
Mechanical:
Temperature range: -40℃ ~ +105℃
Max soldering: +250℃ for 5sec.
Strip length: 8-9mm
contact daisyzhou_003 at 163.com

PCB Screw terminal block RD250-2.5 2.54 1P-XXP 400V 2A
