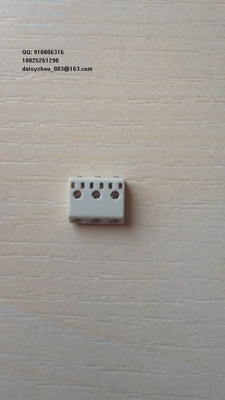

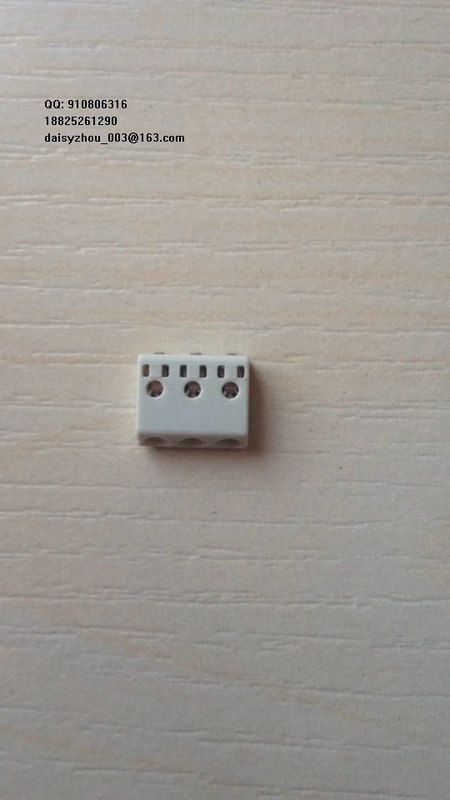

2052 led light connector have 1P, 2P,3P coil package, roller package
Electric products
Refer stander
UL
IEC
Voltage
250V
250V
Current
9A
9A
Wire:
24-18AWG
0.2-0.75mm2
pouch voltage
2.0KV
Work temperatures;
-40°C~+105°C
Wire
5mm
SIZE
PITCH
4mm(.157")
pole
1P,2P,3P
Material and coating contant Daisy ; daisyzhou_003 at 163 dot com
Houseing
PPA,UL94V-0
Terminal
Copper
Block
copper TIN coating
•New 2052 series PCB surface patch(SMD)terminal block have more mini shape, height only is 2.7mm , the well choose of work in mini place. 2052 terminal pitch is 3mm, matched for single core wire in 0.14 mm2 −- 0.34 mm2.User can use tool contact and disassembly easily.
•The best project,especially for connector mini LED plate.
•This terminal Any more, not only save assembly place, also save wire. the mini shape and light color, which are maximum to reduce the influence of shadow from LED light equipment on PCB .PUSH WIRE® terminal block screw-less technology keep the power equipment and LED plate safe connect without service.Same with 2062 type products,2052 series PCB surface patch (SMD)terminal block packaging with rope. Have 1,2 and 3 poles for choose No lose poles when assembly side by side. Can get any poles base on need after self-assembly. Then save cost of purchase, store and product. Make sure the lower cost and higher useful..
•PCB surface patch(SMD)terminal block advantage:
•Compact structure ,height only is 2.7 mm
Matched for single core wire of 0.14 mm2 − 0.34 mm2.
Single core wire can insert directly
•Have 1-, 2- and 3 poles product for choose.
•Note lose poles when assembly side by side.
