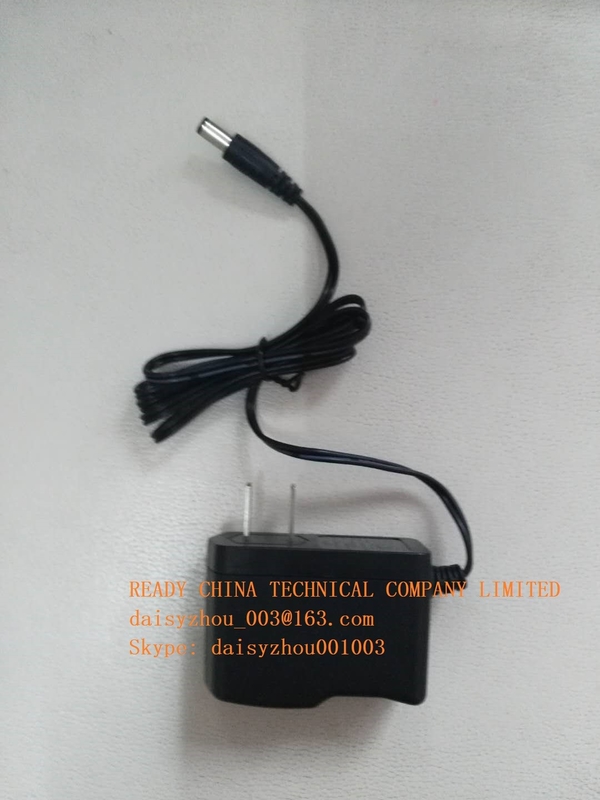

power adapter 24W Seriers products

Product: Power Adapter 24 W

IN : 100-240V / 60HZ 0.3A MAX

OUT: 12V

OUT; 500mA

Power inside: +  -

difference: +- 0.2

Charge top size: 5.5*2.5mm

Contact: daisyzhou_003@163.com

Input current:<0.7A

Input voltage: 90-300V

Start inrush current: 80A max

Surge(Max.) Common mode 6KV

Differential mode  6KV

Option: OCP SCP OVP Y CAP DISPLAY

Case type: vertical

PIN PLUG: CN/US/DE/GB/SAA/BR/IN

Typical dimension: 92.1*33.5*52mm

Applicaion: Set top box, net work terminal audio & Video Player, Mobile storage device.

18W series, 5~24 V Max 3.5A Ripple 120m V V/VI 24W
