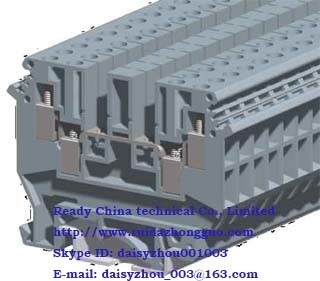

SKJ-4/2x2 DIN RAIL terminal block
Descruotion:
1.General specifications SKJ-4/2X2 terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 1.5-4mm, flexibility wire : 1.5-4mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | |
| T/W/H(mm) | 64*6.2*46.4 |
| Clamping screw | M3 |
| Torque | 0.6-0.8N.M |
| Stripping Length | 7-8mm |
| Rated Voltage | 690V |
| Reted Current | 32A |
| Cross Section | 4mm2 |
| Wire cross section, solid core | 1.5-4mm2 |
| Wire cross section, stranded | 1.5-4mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | UL/RoHS/EX |
