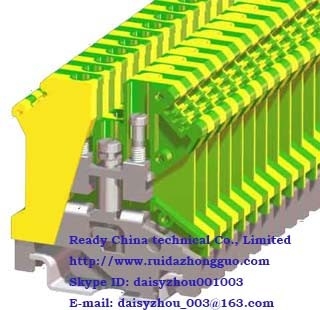

SKJ-2.5JD DIN RAIL terminal block
Descruotion:
1.General specifications SKJ-2.5JD terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : .0.2-2.5mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | |
| T/W/H(mm) | 42.5*5.2*46 |
| Clamping screw | M3 |
| Torque | 0.5-0.7N.M |
| Stripping Length | 6-8mm |
| Rated Voltage | |
| Reted Current | |
| Cross Section | 2.5mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-2.5mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | UL/RoHS/EX |
